| Features |
| • Touch Screen Interface |
| • Windows® 10 Pro |
| • High Reliability with Proven Design |
| • Lowest Board Count in Industry |
| • No Proprietary Circuit Boards |
| • USB Interface – No I/O boards in Computer |
| • Remote Control Software for Factory Diagnostics/Updates |
| • Full Network Compatibility |
| Options |
| Serial Number Entry via Bar Code Scan |
| DC Hi Pot and/or Insulation Resistance |
| Date Coding - Pin Stamp, Laser, Label for Resistance |
| Reject Label Printer |
| Automatic In-Line Interface |
| S/N Label Printing including Logo |
| Label Detection |
| Commutator Arc Detection |
| Regulated Power - AC/DC |

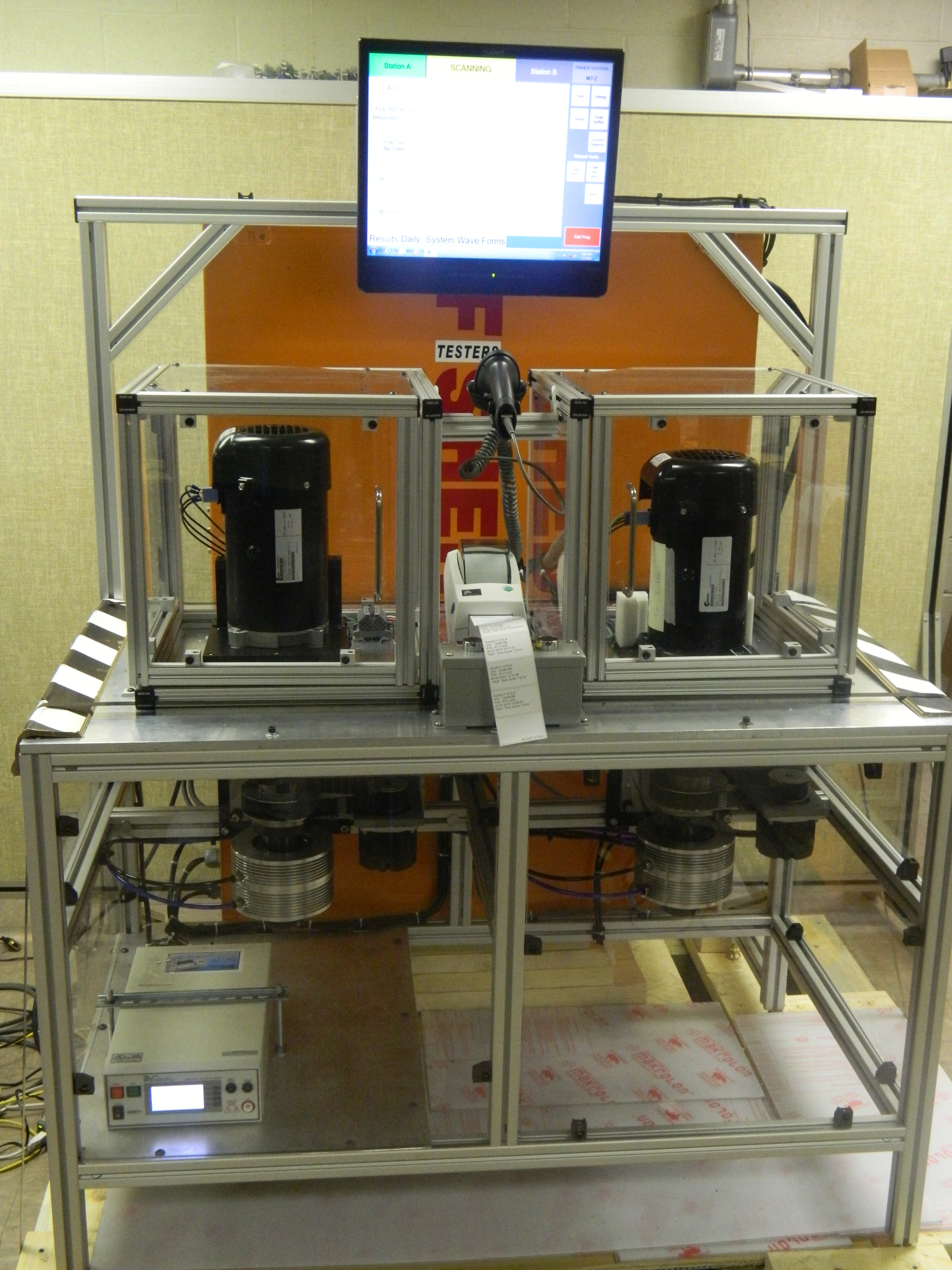

Dual Station Loaded Motor Tester including Automatic Shaft Engagement, Automatic Bar Code Scanners, Full Spectrum Vibration Analysis (8 bands) with Automatic Accelerometer Placement and Reject Printer. Commercial Blender Motor is Tested under Load at 18,000 RPM
| Typical Tests |
| Hi Pot - AC or DC |
| Voltage (VDC or VAC) |
| Power (Watts) |
| Current (ADC or Amps RMS) |
| Temperature |
| Vacuum (In. H2O) |
| Torque (Nm) |
| Direction of Rotation |
| Vibration - Broadband or Spectrum Analysis |
| Thermal Cutout Functionality |
Example Models

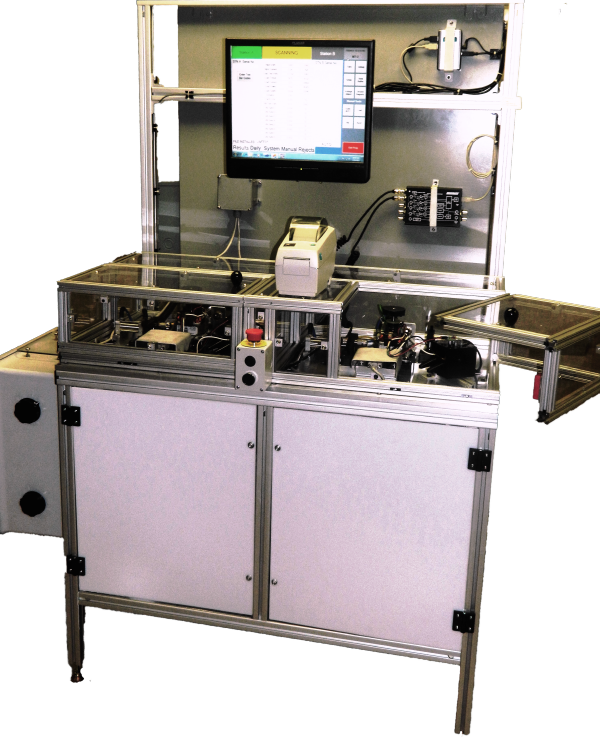

Motor Tester

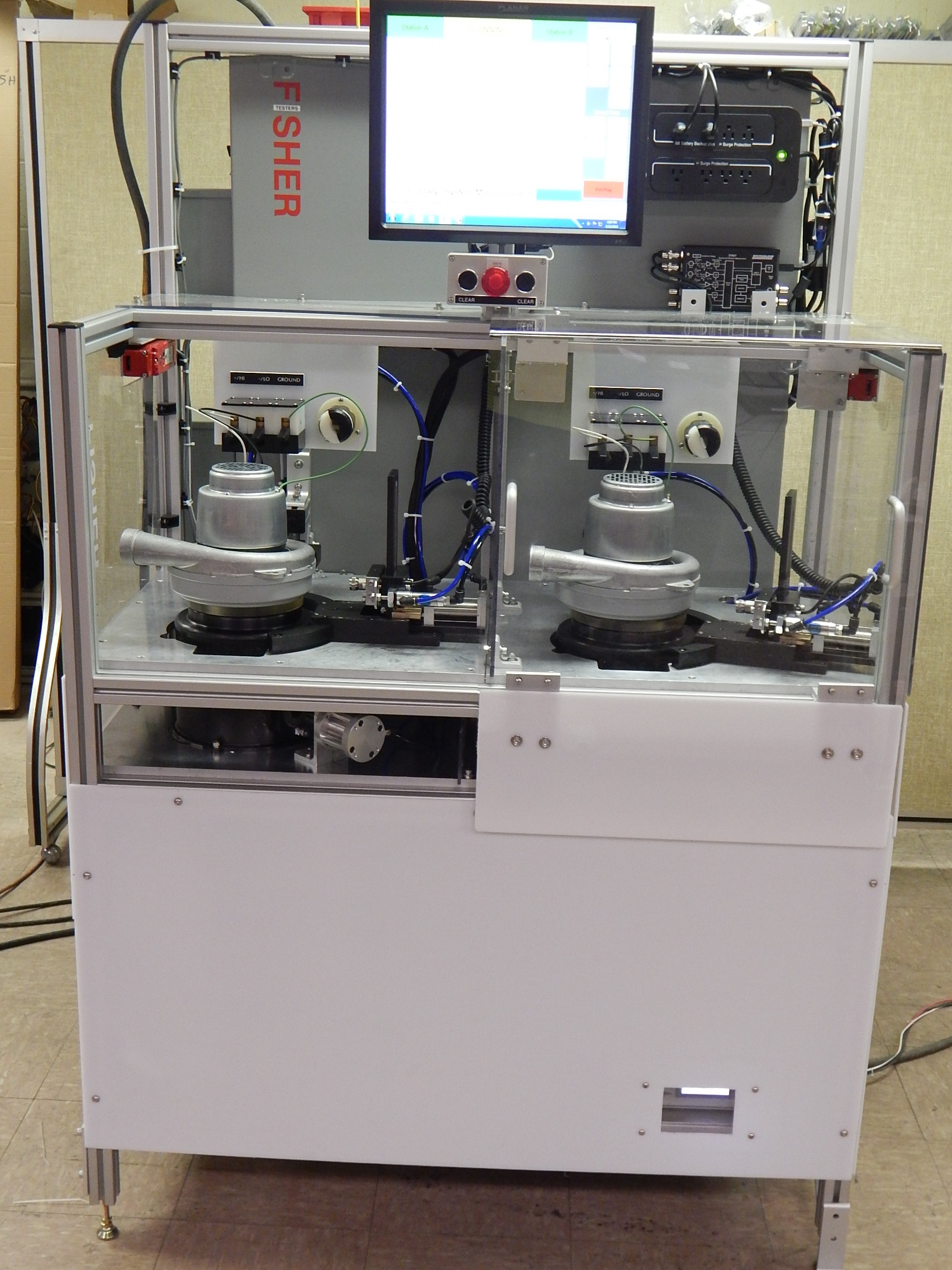

Vacuum Motor Tester

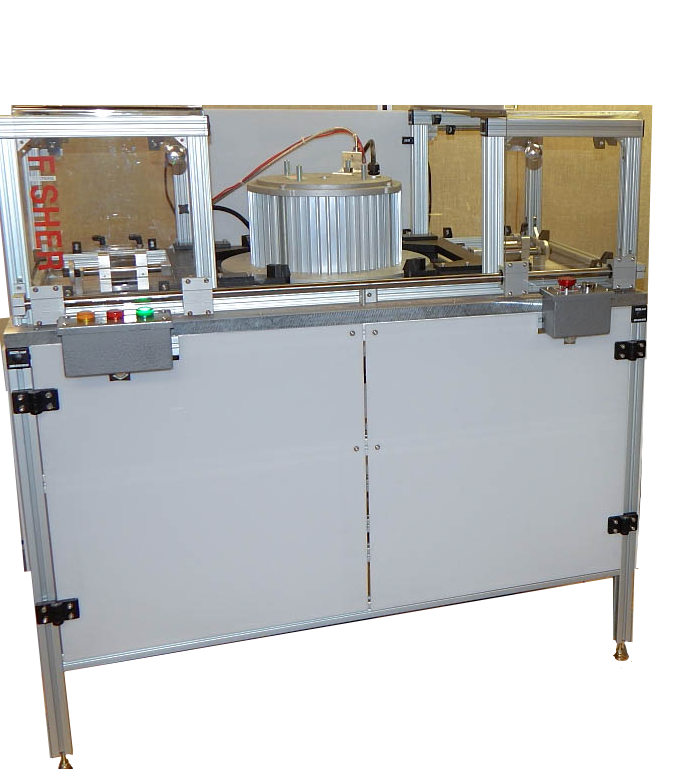

Brushless Motor Tester including:
No-Load, BEMF & Vibration and Safety Testing plus Automatic Nameplate Label printing for Large Industrial Ceiling Fan Manufacturer
